Fivetran Paginated Custom Connector

Joseph Miocevich

Fivetran Paginated Custom Connectors

Understanding and debugging your Fivetran custom connector is not straightfoward, with many online tutorials excluding the key component of data API's... pagination. After reading this blog you will have a better understanding of the expected behaviour between Fivetran and your custom connector when pagination is thrown into the mix.

Overview

A Fivetran custom connector is a cloud hosted function that can be set up on a cloud platform of your choice, which allows you to load data into Fivetran with a API Fivetran does not natively support.

Like standard connectors, custom connectors have a number of benefits:

  • Incremental updates
  • Source data type inference
  • Automatic schema updates
  • Data de-deduplication
  • Destination ingestion optimisations
  • Logs and alerts to monitor events and troubleshoot issues

Use Fivetran's Function connectors if:

  • Fivetran doesn't have a connector for your source
  • You are using private APIs or custom applications
  • You are using a source or API that Fivetran is unlikely to support in the near future
  • You want to sync unsupported file formats that require pre-processing
  • You have sensitive data that needs filtering or anonymizing before entering the destination

Fivetran . Fivetran Custom Connector. (n.d.). Retrieved May 26, 2022, from https://fivetran.com/docs/functions


General Principles

State Management

State is a JSON object that contains cursors from the previous successful Fivetran executions run.

https://fivetran.com/docs/functions/faq/use-state-object

https://fivetran.com/docs/functions/faq/use-secrets-object

Potential Issues to Consider

  • Lambda timeouts and payload limit, see documentation
  • Ensure calls to the Lambda are idempotent for a given Fivetran cursor
  • Be wary or avoid using cursors supplied by the pagination of an upstream API that may not be persistent.

Fivetran Pagination

Fivetran pagination allows your lambda function to specify if there is more data to be collected, this is achieved using the hasMore boolean return.

When hasMore = True, state is updated as normal, however, Fivetran immediately calls the lambda with the updated state. This will keep occurring until hasMore = False, which then resets Fivetran to its default state.

https://fivetran.com/docs/functions/faq/use-hasmore-flag

Example Expected function payload

{
      state: {
        cursor: '2020-01-01',
        paginationCounter: 0
      },
      secrets: Object
    }

Example Expected Connector response format

state: {
cursor: cursorPoint,
paginationCounter: 1
    },
    insert: {
      Table: apiResponseJson
    },
    schema: {
      Table: {
        primary_key: ['some_unique_key']
      }
    },
    hasMore: boolean
  }
}

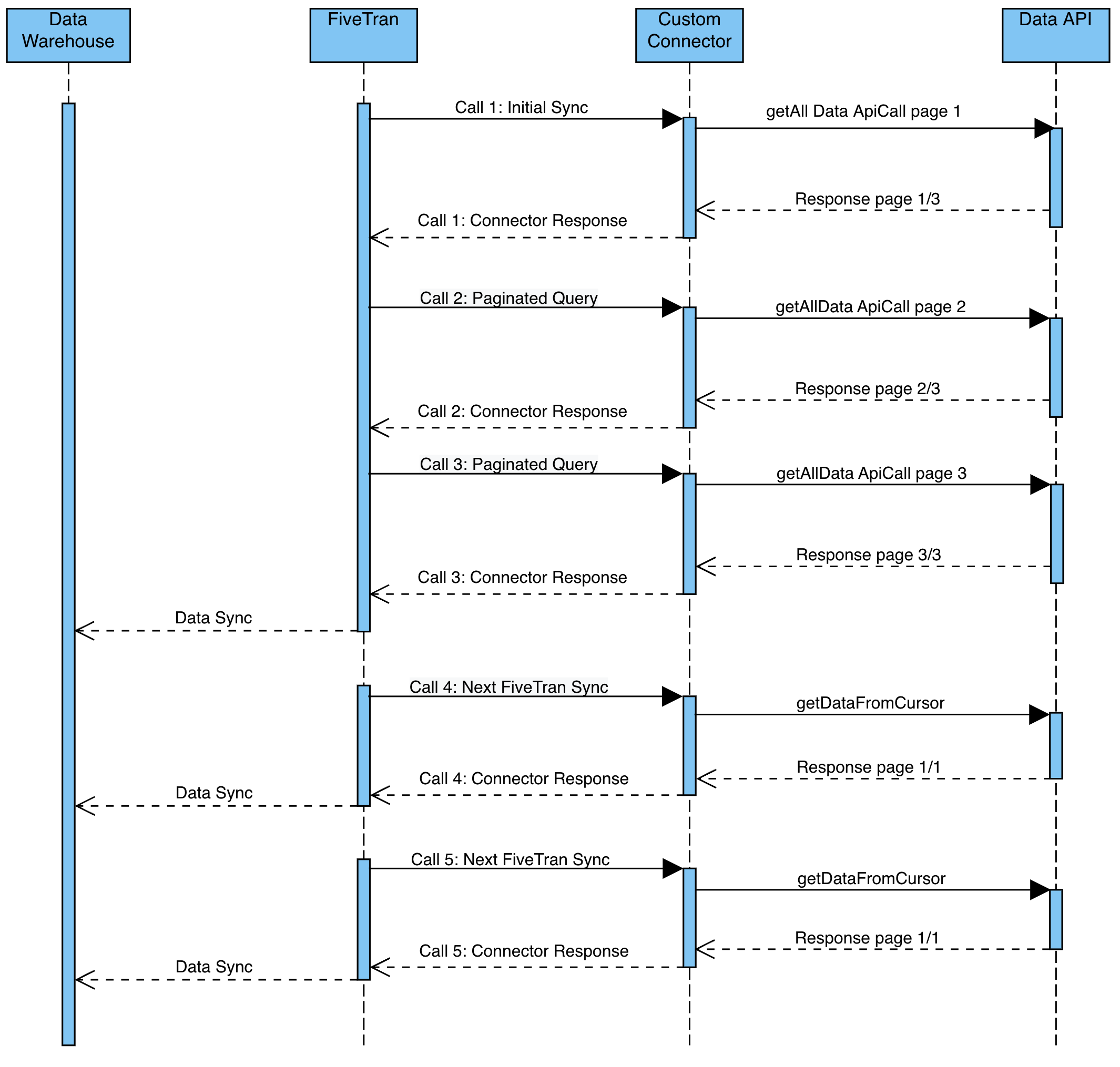

Sequence of Fivetran Connector Excecutions

For the sake of this example and readability, the return JSON from the api call will be summarised as apiJsonResponse

Call 1: Initial Sync

FivetranCall

state: {}

Connector Response

{
state: {
lastUpdate: ''
paginationCounter: 1
},
insert: {
apiJsonResponseTable: apiJsonResponse
},
schema: {
apiJsonResponseTable: {
primary_key: ['id']
}
},
hasMore: True
}

Initial API sync with no state, API call is getting all data with no state and has returned a paginated response

Key response features State:

  • No lastUpdate as paginated query has not been completed
  • Pagination Counter incremented + 1
  • hasMore = True

Call 2: Paginated Query 1

FivetranCall

state: {
lastUpdate: '',
paginationCounter: 1
}

Connector Response

{
state: {
lastUpdate: '',
paginationCounter: 2
},
insert: {
apiJsonResponseTable: apiJsonResponse
},
schema: {
apiJsonResponseTable: {
primary_key: ['id']
}
},
hasMore: True
}

Paginating through the API response for initial sync

Key response features State:

  • No LastUpdate as paginated query has not been completed
  • Pagination Counter incremented + 1
  • hasMore = True

Call 3: Paginated Query 2

FivetranCall

state: {
lastUpdate: '',
paginationCounter: 2
}

Connector Response

{
state: {
lastUpdate: '2020-01-01',
paginationCounter: 0
},
insert: {
apiJsonResponseTable: apiJsonResponse
},
schema: {
apiJsonResponseTable: {
primary_key: ['id']
}
},
hasMore: False
}

Paginating through the API response for initial sync

Key response features State:

  • lastUpdate Set as paginated query has been completed
  • Pagination Counter set to 0, as paginated query is completed
  • hasMore = false

Call 4: Next Fivetran Sync

FivetranCall

state: {
lastUpdate: '2020-01-01',
paginationCounter: 0
}

Connector Response

{
state: {
lastUpdate: '2020-01-02',
paginationCounter: 0
},
insert: {
apiJsonResponseTable: apiJsonResponse
},
schema: {
apiJsonResponseTable: {
primary_key: ['id']
}
},
hasMore: False
}

Fivetran Sync with LastUpdate State

Key response features State:

  • LastUpdate updated, query has been completed
  • Pagination Counter set to 0, as no pagination necessary
  • hasMore = false

Call 5: Next Fivetran Sync

FivetranCall

state: {
lastUpdate: '2020-01-02',
paginationCounter: 0
}

Connector Response

state: {
lastUpdate: '2020-01-03',
paginationCounter: 0
},
insert: {
apiJsonResponseTable: apiJsonResponse
},
schema: {
apiJsonResponseTable: {
primary_key: ['id']
}
},
hasMore: False
})
}

Fivetran Sync with LastUpdate State

Key response features State:

  • lastUpdate updated, query has been completed
  • Pagination Counter set to 0, as no pagination necessary
  • hasMore = false

Examples

For a full working example see Fivetran's documentation

https://fivetran.com/docs/functions/aws-lambda/sample-functions


References

https://fivetran.com/docs/functions

If you have any questions or need help with setting up your own connector, feel free to poke us
